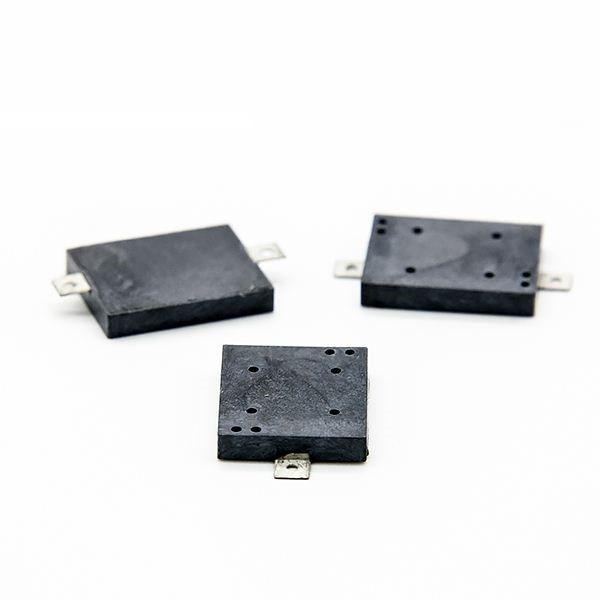

Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

Dongguan TaiMi electronics technology Co。,ltd
Contact Now
    Buy cheap Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current from wholesalers

    Buy cheap Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current from wholesalers
    • Buy cheap Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current from wholesalers
    • Buy cheap Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current from wholesalers
    • Buy cheap Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current from wholesalers
    • Buy cheap Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current from wholesalers

    Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

    Ask Lasest Price
    Brand Name : Laimi
    Model Number : TM-110917F
    Certification : ROHS/REACH
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T , Paypal
    Supply Ability : 1000000pcs/Month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

    Ultrathin smd piezo buzzer 3v 2mA 2731HZ Piezoelectric smd buzzer low current

    As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

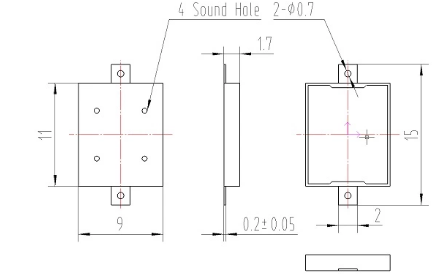

    Dimensions Unit: mm

    *Unit: mm; Tolerance: ±0.3mmExcept Specified


    *Housing Material: Black LCP

    *Terminal plate: 2 soldering pads, tin Plating Brass


    Measuring conditio


    After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value

    1Resonant Frequency4100±500Hz
    2Operating Voltage1~20 Vp-p
    3Rated CurrentMax.5mA ,at 4.1KHz 50% duty Square Wave 5Vp-p
    4Sound Output at 10cmMin. 75dB,at 4.1KHz 50% duty Square Wave 5Vp-p
    5Capacitance12000±30%pF at 1KHz
    6Operating Temperature-20℃~+70℃
    7Store Temperature-30℃~+80℃
    8Net WeightApprox 0.5g
    9RoHSYes

    Electrical And Acoustical Measuring Condition

    Recommended Setting

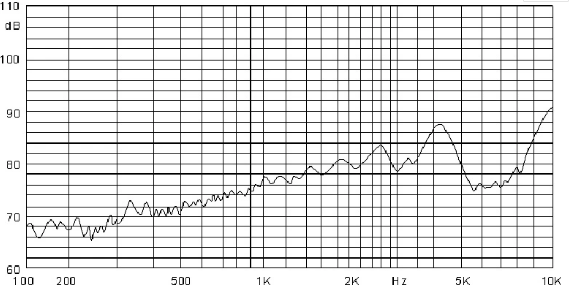

    Frequency Response



    5Vp-p 50% duty Square wave,10cm

    5mm * 2.5mm 3v piezo buzzer 4KHZ LET5025AS
