24vdc waterproof piezo electric buzzer 2925 loud SPL wire piezo
buzzer sign
Dimensions of louder Piezo Ceramic Buzzer 24v have piezo buzzer
circuit

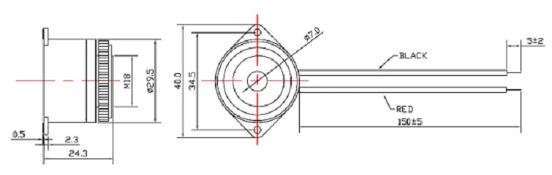

Dimensions Unit: mm
*Housing Material: Black ABS *Lead wire: UL1007 28#
Measuring condition
After any following tests the part shall meet specifications
without any degradation in appearance and performance except SPL.
SPL shall not deviate more than -10 dB from the initial value.
| 1 | Rated Voltage | 24VDC |
| 2 | Operating Voltage | 15– 30VDC |
| 3 | Rated Current | Max.30mA, at 24VDC |
| 4 | Sound Output at 10 m | Min.105dB, at 24VDC |
| 5 | Resonant Frequency | 3500±500 Hz |
| 6 | Tone | Continuous |
| 7 | Operating Temperature | -20 - +70℃ |
| 8 | Storage Temperature | -30 - +80℃ |
| 9 | RoHS | Yes |
| 10 | Weight | Approx 12.0g |
Electrical And Acoustical Measuring Condition
Recommended Setting
Piezo Buzzer Advantages
1 Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
2 High Temperature Test
The part shall be capable of with standing a storage temperature of
+80℃for 96 hours.
3 Low Temperature Test
The part shall be capable of with standing a storage temperature of
-30℃for 96 hours.
4 Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%~95% Duration: 48 hours
and expose to room temperature for 6 hours
5 Temperature Shock Test
Temperature:70℃/1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
6 Drop Test
Standard Packaging From 120mm(Drop on hard wood or board of 5cm
thick,
three sides, six plain.)
7 Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in
each 3 axes
Piezo Buzzer Application
A Piezo buzzer or beeper is an audio signalling device, which may
be mechanical, electromechanical, or Piezo. Typical uses of buzzers
and beepers include alarm devices, timers and confirmation of user
input such as a mouse click or keystroke.
